high power solar save with customed power supply square led light with SAA ,CE ,Rohs

Place of Origin : Zhongshan

Brand Name : Jinsun

Certification : CE,RoHS

Model Number : G2010D-CT 10W

MOQ : 100

Packaging Details : Standard packing or as customer's requirement

Delivery Time : 10-20days

Payment Terms : T/T(30% in advance), Western Union

Supply Ability : 10,000pcs/month

Base Material : Aluminum

Cover Material : Glass

Light Source : led cob

Color : WW/NW/CW

Contact Now

<h1>Appvoal SAA ,CE ,Rohs led ceiling downlight 2 with customed power supply square led light</h1>

Product Feature:

	Model	G2010D-CT
	Input Power:	10w
	Input Volt:	100-240V AC
	PF	>0.75
	Luminous Flux:	800 lm
	CRI:	80 Ra
	LED light source:	Citizen
	Housing	Aluminum
	Lifetime:	50,000 Hours
	Warranty :	3 Years
	Dimmable or Non-dimmable for option

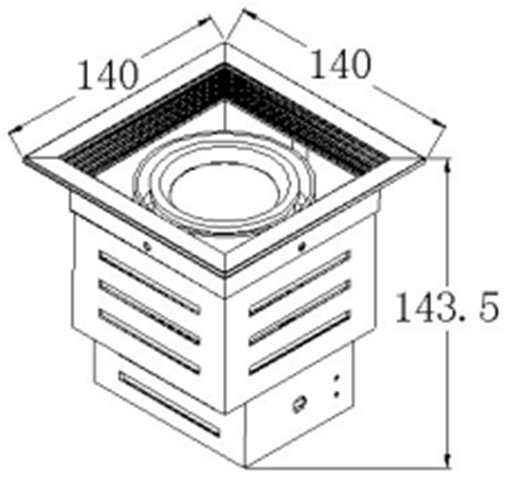

Wattage	Cutout size/mm	Size/mm	Height/mm
10W	*125125(- 0/+3)**	*140140**	144
15W	140*140(- 0/+3)	160*160	163
25W	170*170(- 0/+3)	190*190	173
40W	185*185(- 0/+3)	203*203	188

Specification:

Light Source: LED
Item Type: Grille Lamp
LED Light Source: Citizen
Warranty(Years): 3
Input Voltage(V): 100-240
Lamp Power(W): 10W
Lamp Luminous Flux(lm): 800lm
Lamp Luminous Efficiency(lm/w): 80
CRI (Ra>): 80
Color Temperature(CCT): WW/WH/CW
Working Temperature(℃): -35 - 65
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: IP40
Certification: CE,RoHS,SAA
Model Number:G2010D-CT 10W
Place of Origin: Guangdong, China (Mainland)
Brand Name: Jinsun

1.Patented Honeycomb Heatsink

2.Citizen cob/Bridgelux cob/Cree cob

3.50000 hours lifespan

4.CRI>80+ PF>0.9

5.High quality 6063 lathe aluminum

6.Same cutout different watt for optional

7.Same watt different beam angle for optional

Parameters:

	Item No.:	G2010A-CT
	Power:	10W
	Beam angle	15º/25º/38º/60º
	Led light source:	Citizen cob/Bridgelux cob
	Luminous Flux:	800LM
	Housing:	6063 Aluminum
	CCT:	3000K/4000K/5000K
	CRI:	≥82
	PF:	≥0.90
	IP Rating:	IP40
	Lifespan:	50000Hours
	Warranty:	3years
	Non-dimmable and Dimmable for option,0/1~10V,DALI
	Global patented Heatsink No.:ZL201310030769.3

Wattage

Cutout Size/mm

Height/mm

Surface Size/mm

Beam Angle

15°/25°/38°/60°

10W

15°/25°/38°/60°

10W

15°/25°/38°/60°
